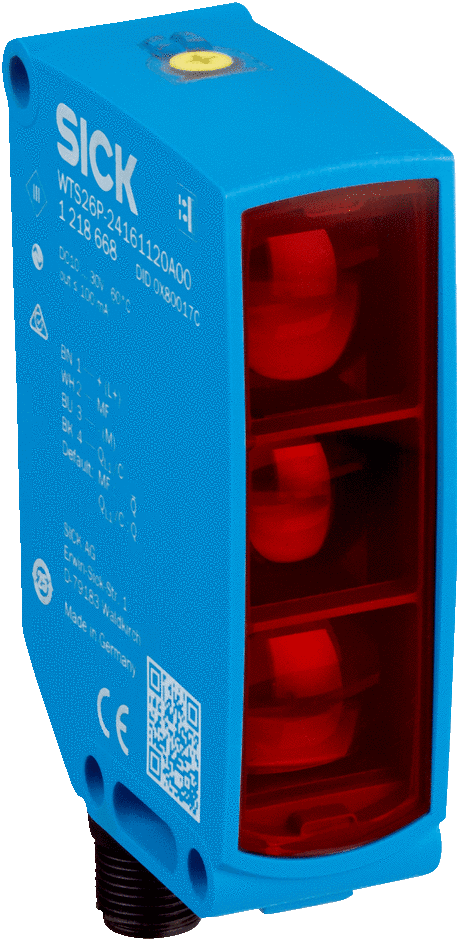

Photoelectric sensors WTS26P-24161120A00
Photoelectric sensors, W26, WTS26P-24161120A00, Sensing range min. / max.: 10 mm / 1,000 mm, Functional principle: Photoelectric proximity sensor, Functional principle detail: Background suppression, TwinEye technology, Switching output: Push-pull: PNP/NPN, Switching mode: Light/dark switching, Connection type: Male connector M12, 4-pin, Light source: PinPoint LED, Type of light: Visible red light, Housing material: VISTAL®, Adjustment: Teach-in button, cable, Potentiometer, Teach-Turn adjustment, Communication interface: IO-Link V1.1, Smart Sensor: Enhanced Sensing, efficient communication, Smart Task, Smart Task name: Base logics, Housing: Rectangular
Functional principle | Photoelectric proximity sensor |
---|---|
Sensing range min. / max. | 10 mm / 1,000 mm |
Functional principle detail | Light/dark switching |
Switching output | Push-pull, PNP/NPN |
Switching mode | Light/dark switching |
Connection type | Male connector M12, 4-pin |
Light source | PinPoint LED, PinPoint LED |
Housing material | VISTAL® |
Adjustment | Teach-in button, cable, Potentiometer, Teach-Turn adjustment |
Communication interface | IO-Link V1.1 |
Smart Sensor | Enhanced Sensing, efficient communication, Smart Task |
Housing | Rectangular, Rectangular |
ECLASS 5.0
27270904
ECLASS 5.1.4
27270904
ECLASS 6.0
27270904
ECLASS 6.2
27270904
ECLASS 7.0
27270904
ECLASS 8.0
27270904
ECLASS 8.1
27270904
ECLASS 9.0
27270904
ECLASS 10
27270904
ECLASS 11
27270904
ECLASS 12
27270903
ETIM 5.0
EC002719
ETIM 6.0
EC002719
ETIM 7.0
EC002719
ETIM 8.0
EC002719
UNSPSC 16.0901
39121528
