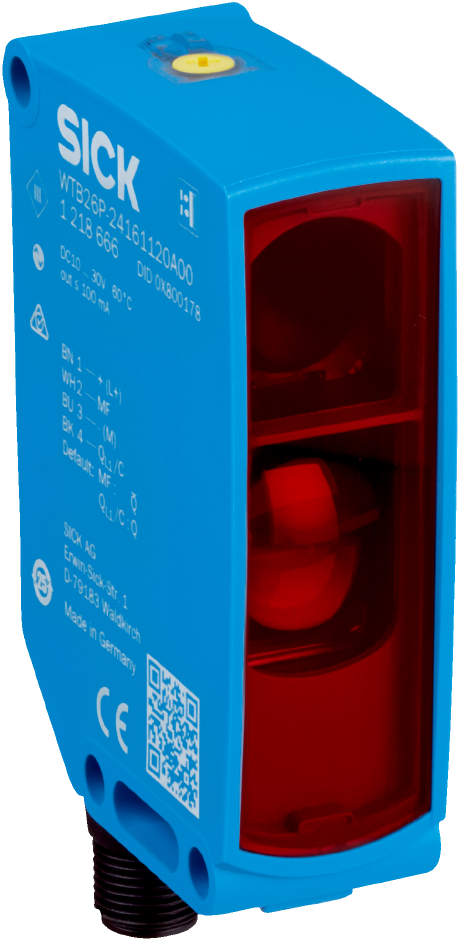

Sick WTB26I-24161120A00 Photoelectric Sensor W26 1218667

Share With Others:

Photoelectric sensors WTB26I-24161120A00

Photoelectric sensors, W26, WTB26I-24161120A00, Sensing range min. / max.: 30 mm / 2,000 mm, Functional principle: Photoelectric proximity sensor, Functional principle detail: Background suppression, Switching output: Push-pull: PNP/NPN, Switching mode: Light/dark switching, Connection type: Male connector M12, 4-pin, Light source: LED, Type of light: Infrared light, Housing material: VISTAL®, Adjustment: Teach-in button, cable, Potentiometer, Teach-Turn adjustment, Communication interface: IO-Link V1.1, Smart Sensor: Enhanced Sensing, efficient communication, Smart Task, Smart Task name: Base logics, Housing: Rectangular

Additional information

Functional principle

Photoelectric proximity sensor

Sensing range min. / max.

30 mm / 2,000 mm

Functional principle detail

PNP

Switching output

Push-pull, PNP/NPN

Switching mode

Light/dark switching

Connection type

Male connector M12, 4-pin

Light source

LED, LED

Housing material

VISTAL®

Adjustment

Teach-in button, cable, Potentiometer, Teach-Turn adjustment

Communication interface

IO-Link V1.1

Smart Sensor

Enhanced Sensing, efficient communication, Smart Task

Housing

Rectangular, Rectangular

Classification

Value

ECLASS 5.0

27270904

ECLASS 5.1.4

27270904

ECLASS 6.0

27270904

ECLASS 6.2

27270904

ECLASS 7.0

27270904

ECLASS 8.0

27270904

ECLASS 8.1

27270904

ECLASS 9.0

27270904

ECLASS 10

27270904

ECLASS 11

27270904

ECLASS 12

27270903

ETIM 5.0

EC002719

ETIM 6.0

EC002719

ETIM 7.0

EC002719

ETIM 8.0

EC002719

UNSPSC 16.0901

39121528
