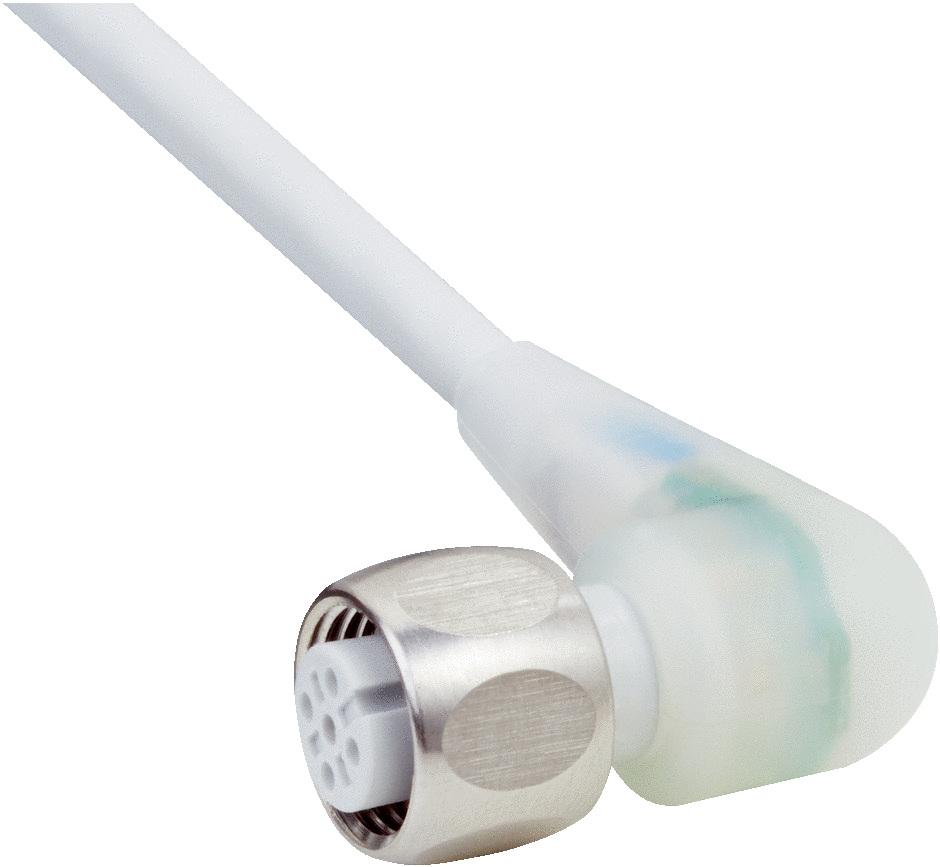

Sick DOL-1204-L05MRN Sensor/Actuator Cable 6058483

Share With Others:

connectors and cables, DOL-1204-L05MRN

connectors and cables, Sensor/actuator cable, DOL-1204-L05MRN, Connection type head A: Female connector, M12, 4-pin, angled, Connection type head B: Flying leads, Signal type: Sensor/actuator cable, Cable: 5 m, 4-wire, PP, Description: Sensor/actuator cable, unshielded, LED function display, Connection systems: Flying leads, Note: This product is generally resistant to chemical cleaning agents (see ECOLAB) and other chemical compounds such as H2O2 and CH2O2. Before permanent installation is carried out, the material’s resistance to the cleaning agent being used must be checked., Resistant against lactic acid & hydrogen peroxide (H2O2), only suitable for PNP sensors, Application: Hygienic and washdown zones, Drag chain operation

Additional information

Connection type head A

Female connector, M12, 4-pin, angled

Connection type head B

Flying leads

Signal type

Sensor/actuator cable

Description

Sensor/actuator cable, unshielded, LED function display

Connection systems

Flying leads

Note

This product is generally resistant to chemical cleaning agents (see ECOLAB) and other chemical compounds such as H2O2 and CH2O2. Before permanent installation is carried out, the material's resistance to the cleaning agent being used must be checked., Resistant against lactic acid & hydrogen peroxide (H2O2), only suitable for PNP sensors

Application

Hygienic and washdown zones, Drag chain operation

Classification

Value

ECLASS 5.0

19030312

ECLASS 5.1.4

19030312

ECLASS 6.0

27060304

ECLASS 6.2

27060304

ECLASS 7.0

27060304

ECLASS 8.0

27060304

ECLASS 8.1

27060304

ECLASS 9.0

27060304

ECLASS 10

27060304

ECLASS 11

27060304

ECLASS 12

27060304

ETIM 5.0

EC000830

ETIM 6.0

EC000830

ETIM 7.0

EC003249

ETIM 8.0

EC003249

UNSPSC 16.0901

26121604
